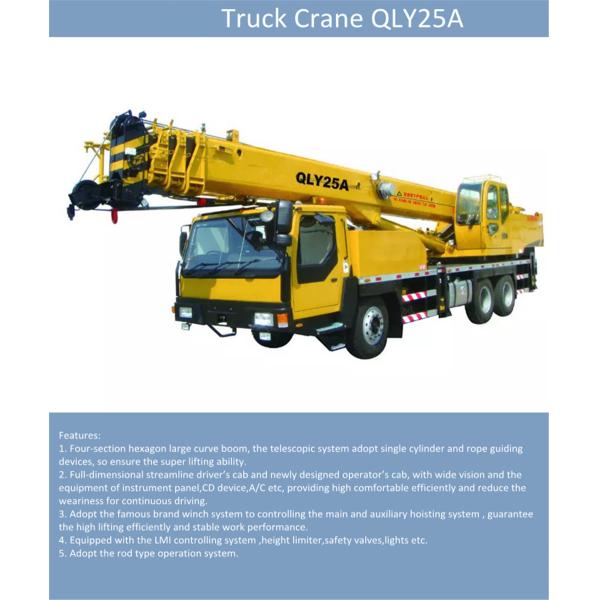

QLY25A 25Ton Truck Crane

Place of Origin : shandong ,china

Brand Name : Katop

Certification : CE,SGS, ISO9001:2008

Model Number : QLY25A

MOQ : 1 unit

Packaging Details : nude packing

Delivery Time : Shipped in 30 days after payment

Payment Terms : T/T or L/C

Supply Ability : 20 Set/Sets per Month

Rated Lifting Moment : 784kN.m

Rated Loading Capacity : 25ton

Max. Lifting Load : 30ton

Max. Lifting Height : 40m

Span : 5310mm*5900mm

Application : Construction Machinery

Feature : Truck Crane

Overall dimensions : 13230x2500x3450mm

Total weight in travel : 28900KG

Engine model : WP10.270 (Cummins Engine Optional)

Engine Rated Power : 270HP/2500(r/min)

Max. travel speed : 75km/h

Max. grade ability : 26%
